BigMemory is a pure Java product from Terracotta that permits caches to use an additional type of memory store outside the object heap. It is packaged for use in Enterprise Ehcache as a snap-in job store called the "off-heap store." If Enterprise Ehcache is distributed in a Terracotta cluster, you can configure BigMemory in both Ehcache (the Terracotta client or L1) and in the Terracotta Server Array (the L2).
This off-heap store, which is not subject to Java GC, is 100 times faster than the DiskStore and allows very large caches to be created (we have tested this up to 350GB).
Because off-heap data is stored in bytes, there are two implications:
For a tutorial on Ehcache BigMemory, see BigMemory for Enterprise Ehcache Tutorial.
Configuring a cache to use an off-heap store can be done either through XML or programmatically.
If using distributed cache with strong consistency, a large number of locks may need to be stored in client and server heaps. In this case, be sure to test the cluster with the expected data set to detect situations where OutOfMemory errors are likely to occur. In addition, the overhead from managing the locks is likely to reduce performance.
The following XML configuration creates an off-heap cache with an in-heap store (maxElementsInMemory) of 10,000 elements which overflow to a 1-gigabyte off-heap area.
<ehcache updateCheck="false" monitoring="off" dynamicConfig="false">
<defaultCache maxElementsInMemory="10000"
eternal="true"
memoryStoreEvictionPolicy="LRU"
statistics="false" />
<cache name="sample-offheap-cache"
maxElementsInMemory="10000"
eternal="true"
memoryStoreEvictionPolicy="LRU"
overflowToOffHeap="true"
maxMemoryOffHeap="1G"/>
</ehcache>
|
If a CacheManager has a pooled offheap setting, caches with fixed-size offheap settings cannot be added dynamically. Dynamic in this case refers to caches that are added programmatically or using the Terracotta Developer Console while the CacheManager is running. A fixed-size offheap setting refers to a setting that specifies a size in bytes. |
The configuration options are:
Values may be true or false.
When set to true, enables the cache to utilize off-heap memory storage to improve performance. Off-heap memory is not subject to Java GC cycles and has a size limit set by the Java property MaxDirectMemorySize. The default value is false.
Sets the amount of off-heap memory available to the cache. This attribute's values are given as <number>k|K|m|M|g|G|t|T for kilobytes (k|K), megabytes (m|M), gigabytes (g|G), or terabytes (t|T). For example, maxMemoryOffHeap="2g" allots 2 gigabytes to off-heap memory. In effect only if overflowToOffHeap is true.
The minimum amount that can be allocated is 128MB. There is no maximum.
You should set maxElementsInMemory to at least 100 elements when using an off-heap store to avoid performance degradation. Lower values for maxElementsInMemory trigger a warning to be logged.
The equivalent cache can be created using the following programmatic configuration:
public Cache createOffHeapCache()
{
CacheConfiguration config = new CacheConfiguration("sample-offheap-cache", 10000)
.overflowToOffHeap(true).maxMemoryOffHeap("1G");
Cache cache = new Cache(config);
manager.addCache(cache);
return cache;
}
Enterprise Ehcache trial download comes with a license key good for 30 days. Use this key to activate the off-heap store.
It can be added to the classpath or via a system property.
Add the terracotta-license.key to the root of your classpath, which is also where you add ehcache.xml. It will be
automatically found.
Add a com.tc.productkey.path=/path/to/key system property which points to the key location.
For example,
java -Dcom.tc.productkey.path=/path/to/key
In order to use these configurations, you must then use the ehcache-core-ee jar on your classpath and modify your JVM command-line to increase the amount of direct memory allowed by the JVM. You must allocate at least 256MB more to direct memory than the total off-heap memory allocated to caches.
For example, to allocate 2GB of memory in the JVM:
java -XX:MaxDirectMemorySize=2G ..."
| To accommodate server communications layer requirements, the value of maxDirectMemorySize must be greater than the value of maxMemoryOffHeap. The exact amount greater depends upon the size of maxMemoryOffHeap. The minimum is 256MB, but if you allocate 1GB more to the maxDirectMemorySize, it will certainly be sufficient. The server will only use what it needs and the rest will remain available. |
There are some rarer configuration options which can be used for fine grained control
This is a JVM flag which is meant to improve performance of memory-hungry applications. In testing, this option gives a 5% speed improvement with a 1Gb off-heap cache.
See http://andrigoss.blogspot.com/2008/02/jvm-performance-tuning.html for a discussion.
Firstly, the MemoryStore and the DiskStore do not have any limits.
By default, the OffHeapStore has a 4MB limit for classes with high quality hashcodes, and
256KB for those with pathologically bad hashcodes. The built-in classes such as the
java.lang.Number subclasses such as Long, Integer etc and and String have
high quality hashcodes.
You can increase the size by setting a system property net.sf.ehcache.offheap.cache_name.config.idealMaxSegmentSize to
the size you require.
For example,
net.sf.ehcache.offheap.com.company.domain.State.config.idealMaxSegmentSize=30M
Operating systems use swap partitions for virtual memory and are free to move less frequently used pages of memory to the swap partition. This is generally not what you want when using the OffHeapStore, as the time it takes to swap a page back in when demanded will add to cache latency.
It is recommended that you minimise swap use for maximum performance.
On Linux, you can set /proc/sys/vm/swappiness to reduce the risk of memory pages being swapped out. See http://lwn.net/Articles/83588/
for details of tuning this parameter. Note that there are bugs in this which were fixed in kernel 2.6.30 and higher.
Another option is to configure HugePages. See http://unixfoo.blogspot.com/2007/10/hugepages.html
This kind of problem bit us several times in the past in Linux. Although there's a swappiness kernel parameter that can be set to zero, it is usually not enough to avoid swapping altogether. The only surefire way to avoid any kind of swapping is either (a) disabling the swap partition, with the undesirable consequences which that may bring, or (b) using HugePages, which are always mapped to physical memory and cannot be swapped out to disk.
This setting applies to the HotSpot JVM. It's use should be considered to make the most efficient use of memory in 64 bit mode. See http://wikis.sun.com/display/HotSpotInternals/CompressedOops for details.
It is possible to over-allocate memory to the off-heap store and overrun the physical and even virtual memory available on the OS. See Slow Off-Heap Allocation for how to handle this situation.
The easiest way to get started is to play with a simple sample app.
Download here a simple Maven-based application that uses the ehcache off-heap functionality.
Note: You will need to get a license key and install it as discussed above to run this.
Checkout http://svn.terracotta.org/svn/forge/offHeap-test/ a Maven-based performance comparisons between different store configurations.
Note: You will need to get a demo license key and install it as discussed above to run the test.
Here are some charts from tests we have run on the release candidate of BigMemory.
The test machine was a Cisco UCS box running with Intel(R) Xeon(R) Processors. It had 6 2.93Ghz Xeon(R) cpus for a total of 24 cores, with 128GB of RAM, running RHEL5.1 with Sun JDK 1.6.0_21 in 64 bit mode.
We used 50 threads doing an even mix of reads and writes with 1KB elements. We used the default garbage collection settings.
The tests all go through a load/warmup phase then start a performance run. You can use the tests in your own environments and extend
them to cover different read/write ratios, data sizes, -Xmx settings and hot sets. The full suite, which is done with
run.sh takes 4-5 hours to complete.
The following charts show the most common caching use case. The read/write ratio is 90% reads and 10% writes. The hot set is that 90%
of the time cache.get() will access 10% of the key set. This is representative of the the familiar Pareto distribution that is
very commonly observed.
There are of course many other caching use cases. Further performance results are covered on the Further Performance Analysis page.

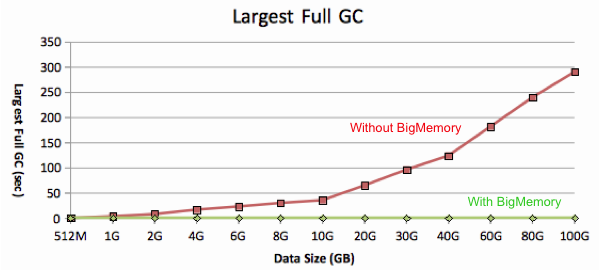

This chart shows the largest observed full GC duration which occurred during the performance run. Most non-batch applications have maximum response time SLAs. As can be seen in the chart, as data sizes grow the full GC gets worse and worse for cache held on heap, whereas off-heap remains a low constant.
The off-heap store will therefore enable applications with maximum response time SLAs to reliably meet those SLAs.

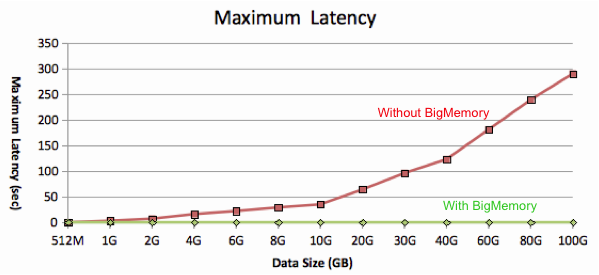

This chart shows the maximum observed latency while performing either a cache.put() or a cache.get(). It is very similar to the
Full GC chart because the reason the on-heap latencies blow out is full GCs, where all threads in the test app get frozen.
Once again the off-heap store can be observed to have a flat, low maximum latency, because any full GCs are tiny, and the cache has excellent concurrency properties.

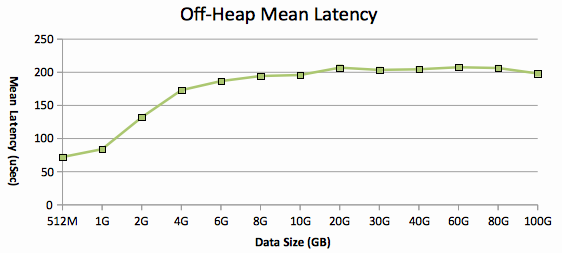

This chart shows the off-heap mean latency in microseconds. It can be observed to be flat from 2GB up to 40GB. Further in-house testing shows that the it remains flat up to the limits we have tested to which is currently 350GB.
Lower latencies are observed at smaller data set sizes because we use a maxElementsInMemory setting which approximates to
200MB of on-heap store. On-heap, excluding GC effects is faster than off-heap because there is no deserialization on gets.
At lower data sizes there is a higher probability that the small on-heap store will be hit, which is reflected in the lower average
latencies.

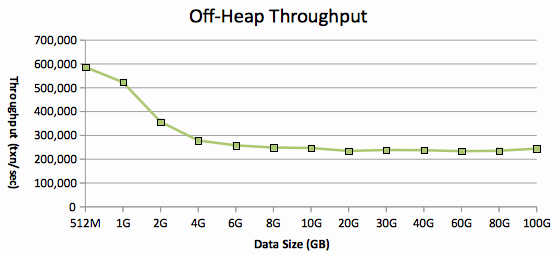

This chart shows the cache operations per second achieved with off-heap. It is the inverse of average latency and shows much the same thing. Once the effect of the on-heap store becomes marginal, throughput remains constant, regardless of cache size. Once again we have verified this constancy up to 350GB.
Note that much larger throughputs than those shown in this chart are achievable. Throughput is affected by:
With the OffHeapStore, Ehcache Enterprise has three stores:

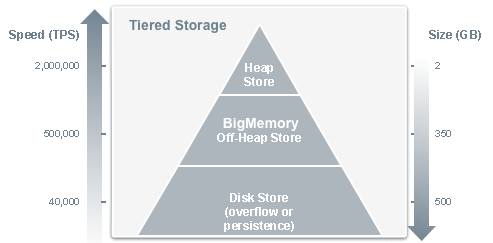

The relationship between speed and size for each store is illustrated below:
As a performance optimization, and because storage gets much cheaper as you drop down through the hierarchy, we write each put to as many stores as are configured. So, if all three are configured, the Element may be present in MemoryStore, OffHeapStore and DiskStore.
The result is that each store consumes storage for itself and the other stores higher up the hierarchy. So, if the MemoryStore has 1,000,000 Elements which consume 2Gb, and the OffHeapStore is configured for 8GB, then 2GB of that will be duplicate of what is in the MemoryStore. And the 8GB will also be duplicated on the DiskStore plus the DiskStore will have what cannot fit in any of the other stores.
This needs to be taken into account when configuring the OffHeap and Disk stores.
It has the great benefit, which pays for the duplication, of not requiring copy on eviction. On eviction from a store, an Element can simply be removed. It is already in the next store down.
One further twist: the MemoryStore is only populated on a read. Puts go to the OffHeapStore and then when read, are held in the MemoryStore. The MemoryStore thus holds hot items of the OffHeapStore. This will result in a difference in what can be expected to be in the MemoryStore between this implementation and the open source one. A "usage" for the purposes of the eviction algorithms is either a put or a get. As only gets are counted in this implementation, some differences will be observed.
So you can have a huge in-process cache. But this is not a distributed cache, so when you shut down you will lose what is in the cache. And when you start up, how long will it take to load the cache?
In caches up to a GB or two, these issues are not hugely problematic. You can often pre-load the cache on start-up before you bring the application online. Provided this only takes a few minutes, there is minimal operations impact.
But when we go to tens of GBs, these startup times are O(n), and what took 2 minutes now takes 20 minutes.
To solve this problem, we provide a new implementation of Ehcache's DiskStore, available in the enterprise version.
You simply mark the cache diskPersistent=true as you normally would for a disk persistent cache.
It works as follows:
diskSpoolBufferSizeMB cache puts will be slowed while the DiskStore writer catches up. By default this buffer is 30MB but can be increased through configuration.On a 32 bit operating system, Java will always start with a 32 bit data model. On 64 bit OSs, it will default to
64 bit, but can be forced into 32 bit mode with the Java command-line option -d32.
The problem is that this limits the size of the process to 4GB. Because garbage collection problems are generally
manageable up to this size, there is not much point in using the OffHeapStore, as it will simply be slower.
If you are suffering GC issues with a 32 bit JVM, then OffHeapStore can help. There are a few points to keep in mind.
-Xmx2g) then you have at most 2GB left for your off-heap caches.For these reasons we issue a warning to the log when OffHeapStore is used with 32 bit JVMs.
Based on its configuration and memory requirements, each cache may attempt to allocate off-heap memory multiple times. If off-heap memory comes under pressure due to over-allocation, the system may begin paging to disk, thus slowing down allocation operations. As the situation worsens, an off-heap buffer too large to fit in memory can quickly deplete critical system resources such as RAM and swap space and crash the host operating system.
To stop this situation from degrading, off-heap allocation time is measured to avoid allocating buffers too large to fit in memory. If it takes more than 1.5s to allocate a buffer, a warning is issued. If it takes more than 15s, then the JVM is halted with System.exit() (or a different method if the Security Manager prevents this).
To prevent a JVM shutdown after a 15s delay has occurred, set the net.sf.ehcache.offheap.DoNotHaltOnCriticalAllocationDelay system property to true. In this case, an error is logged instead.
While the MemoryStore holds a hotset (a subset) of the entire data set, the off-heap store should be large enough to hold the entire data set. The frequency of cache misses begins to rise when the data is too large to fit into off-heap memory, forcing gets to fetch data from the DiskStore. More misses in turn raise latency and lower performance.
For example, tests with a 4GB data set and a 5GB off-heap store recorded no misses. With the off-heap store reduced to 4GB, 1.7 percent of cache operations resulted in misses. With the off-heap store at 3GB, misses reached 15 percent.
The pluggable MemoryStore eviction algorithms work as normal. The OffHeapStore and DiskStore use a Clock Cache, a standard paging algorithm which is an approximation of LRU.
This is due to repartitioning in the OffHeapStore which is normal. Once the cache is fully filled the performance slow-downs cease.
Refer to "Increasing the maximum serialized size of an Element that can be stored in the OffHeapStore" in the Advanced Configuration Options section above.
On startup the CacheManager will calculate the amount of off-heap storage required for all caches using off-heap stores. The memory will be allocated from the OS and zeroed out by Java. The time taken will depend on the OS. A server-class machine running Linux will take approximately half a second per GB.
We print out log messages for each 10% allocated, and also report the total time taken.
This time is incurred only once at startup. The pre-allocation of memory from the OS is one of the reasons that runtime performance is so fast.
Maven starts java for you. You cannot add the required -XX switch in as a mvn argument.
Maven provides you with a MAVEN_OPTS environment variable you can use for this on Unix systems.
e.g. to specify 1GB of MaxDirectMemorySize and then to run jetty:
export MAVEN_OPTS=-XX:MaxDirectMemorySize=1G
mvn jetty:run-war
